SectionBox Animator Gallery
(This page contains multiple gifs. Please be sure to have a stable internet connection for proper viewing.)
Directions
Directons

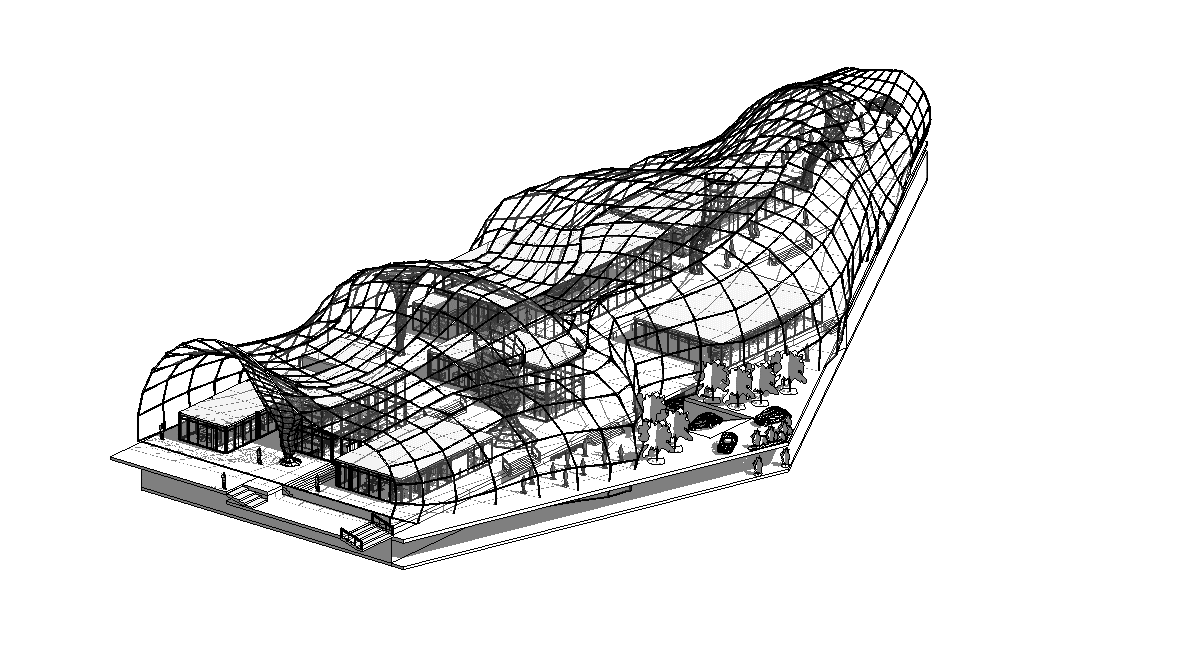

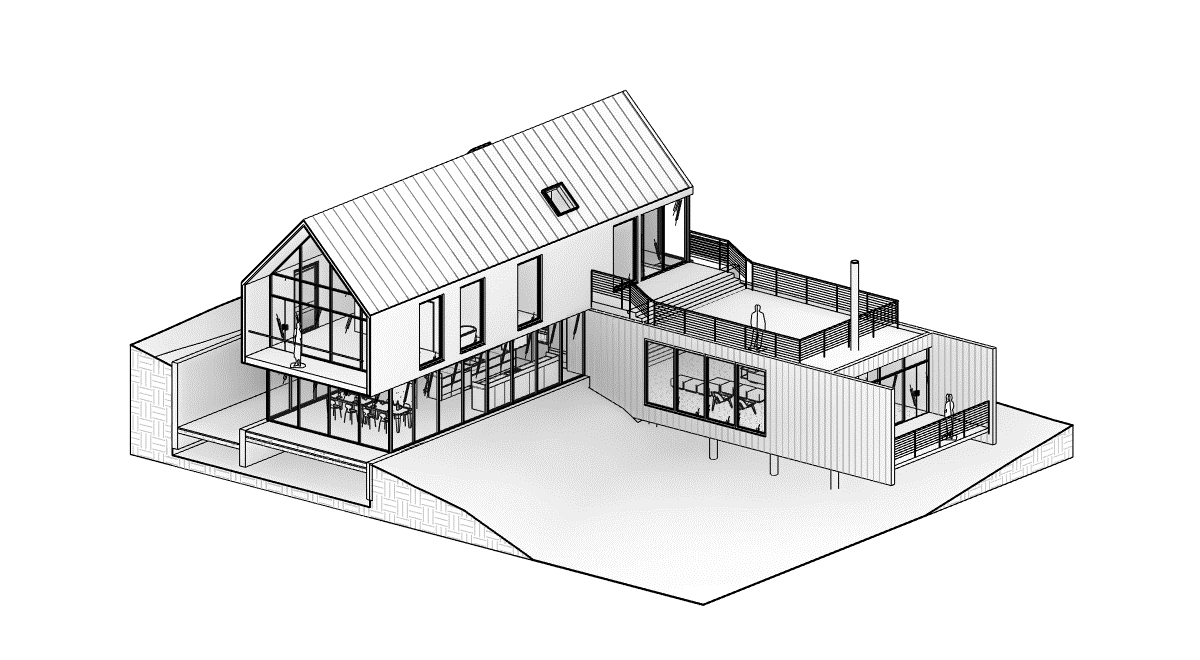

Front to Back

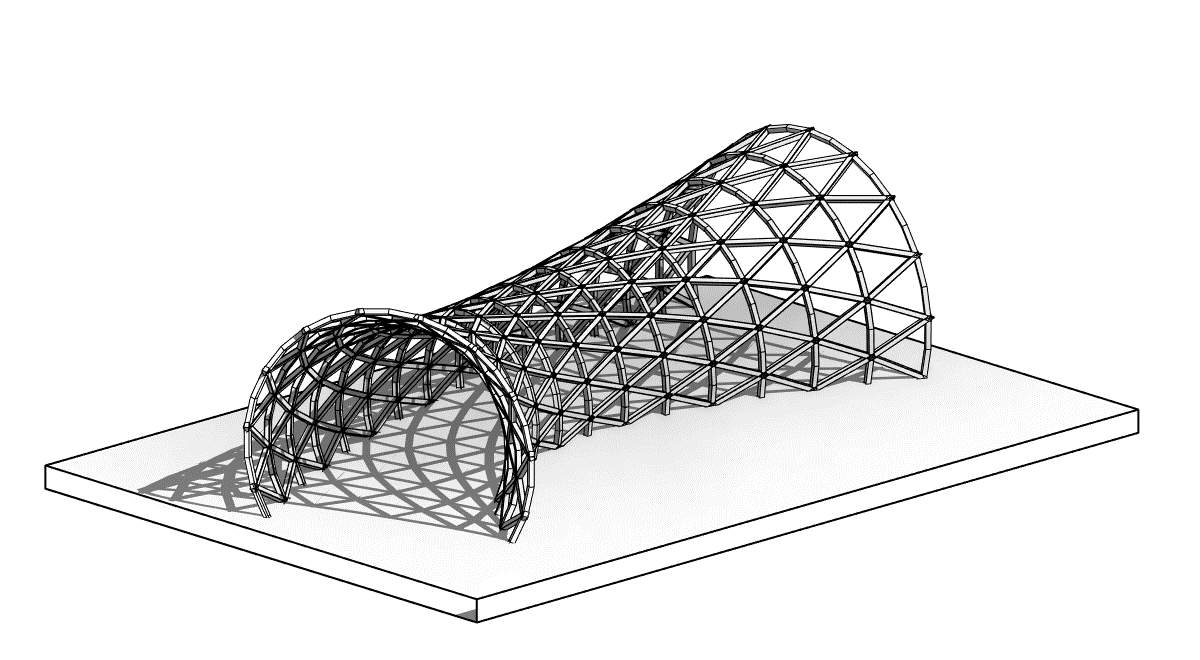

Right to Back

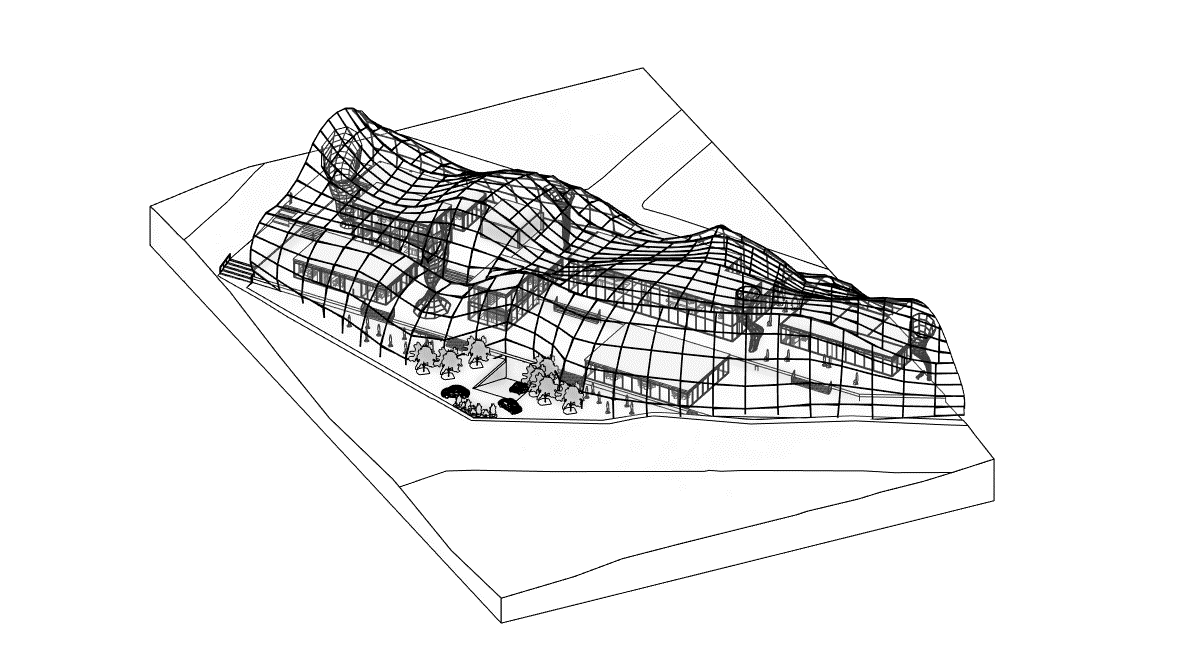

Top to Bottom

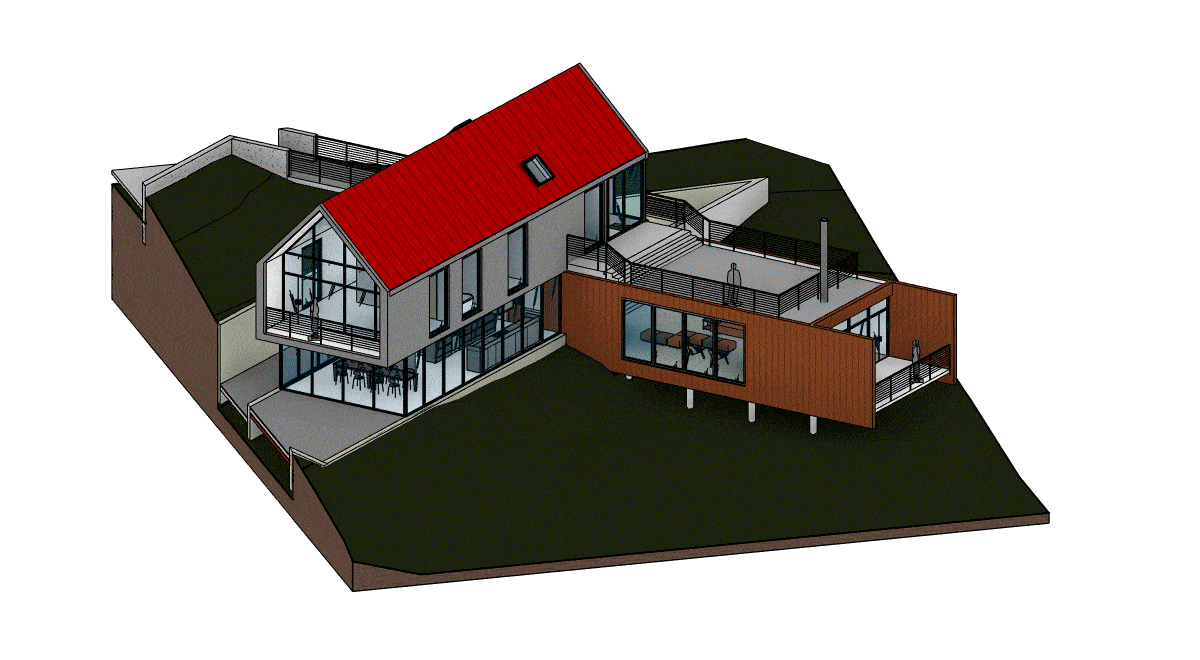

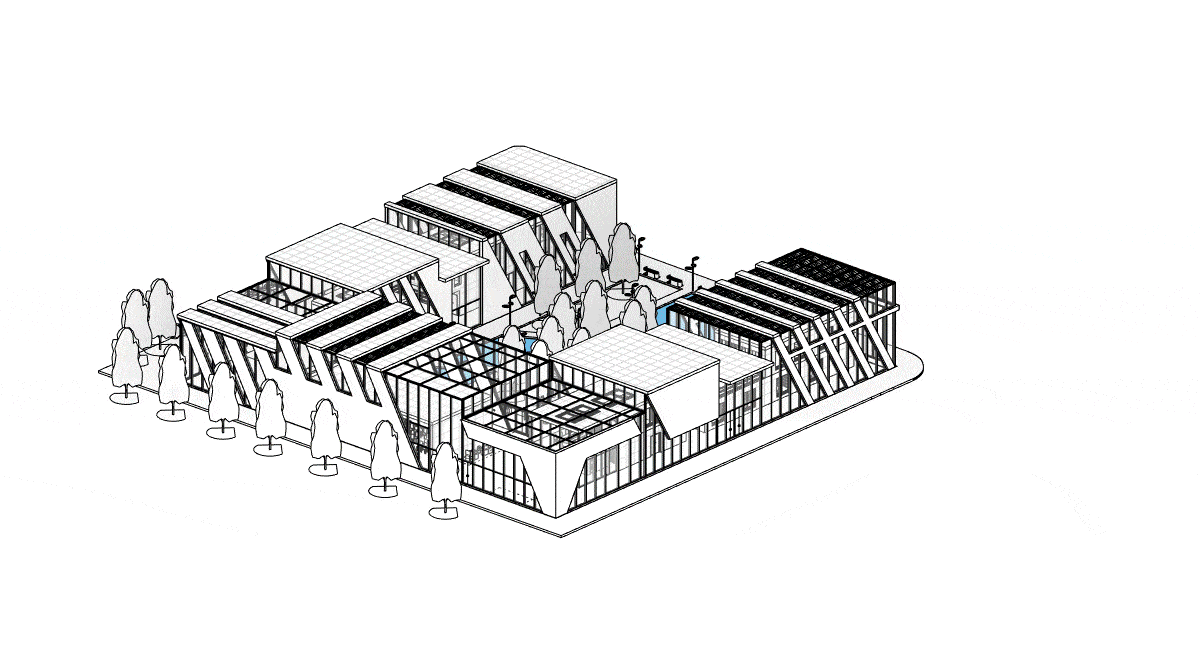

Front to Back

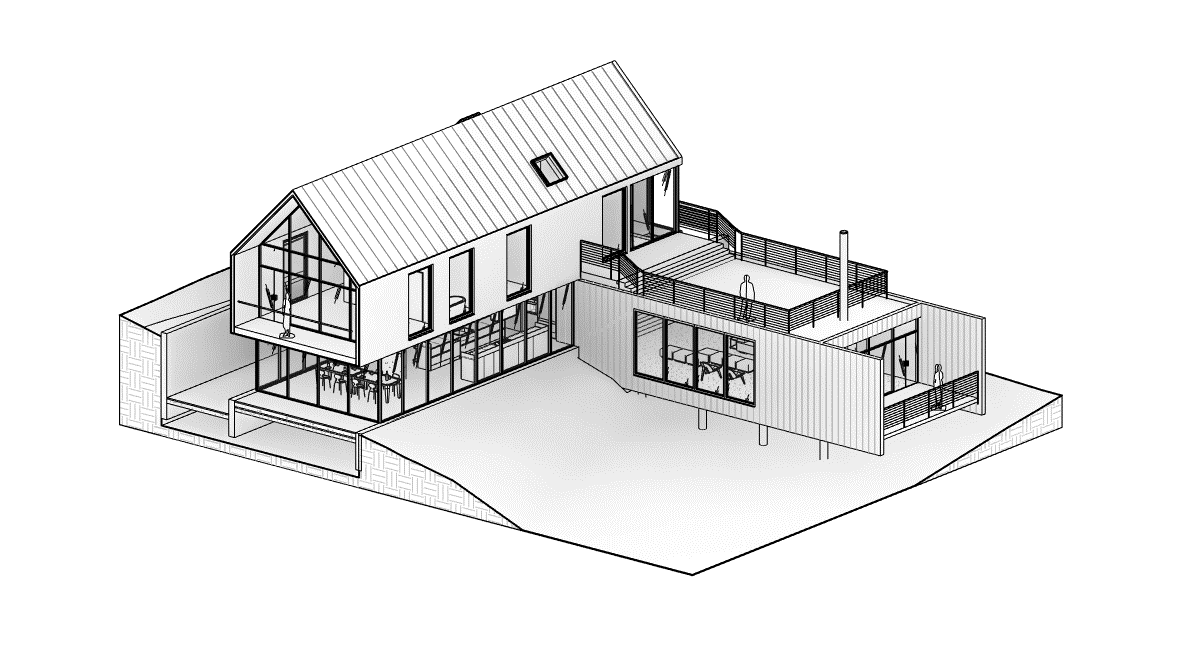

Left to Right

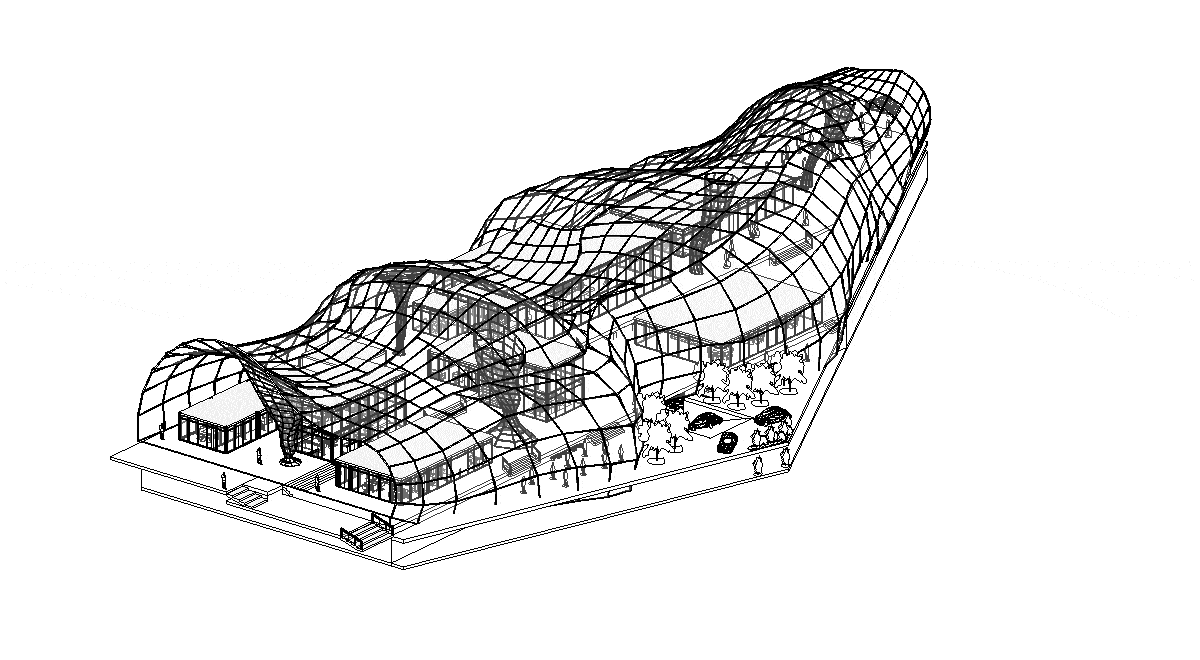

Top to Bottom

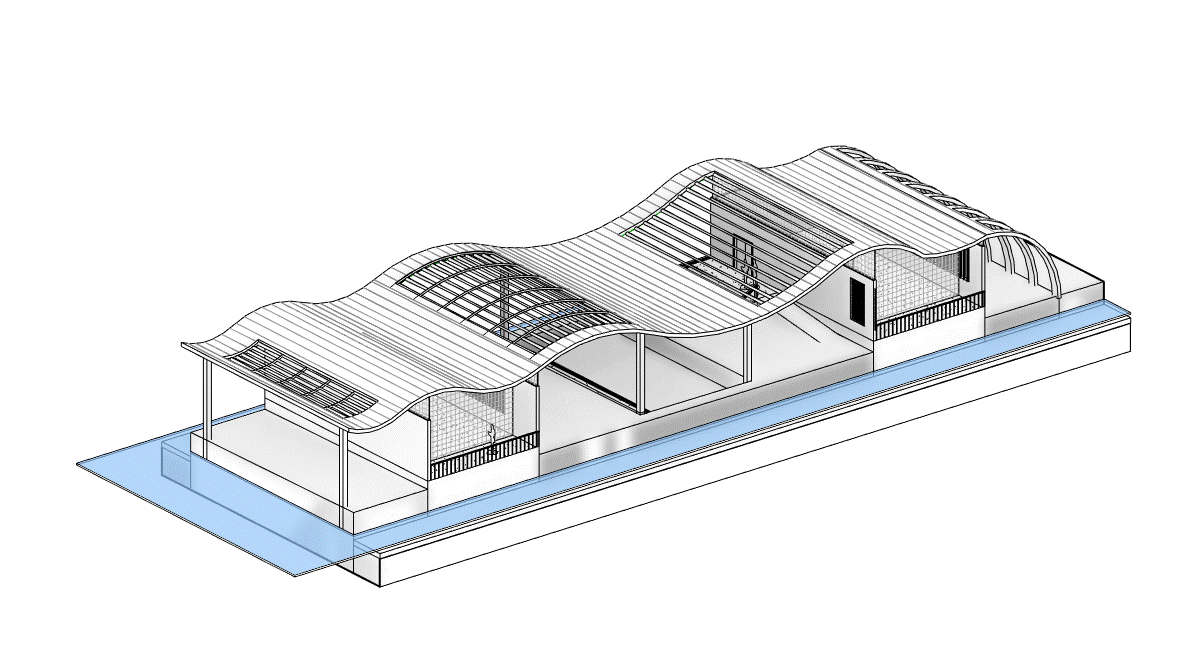

Right to Left

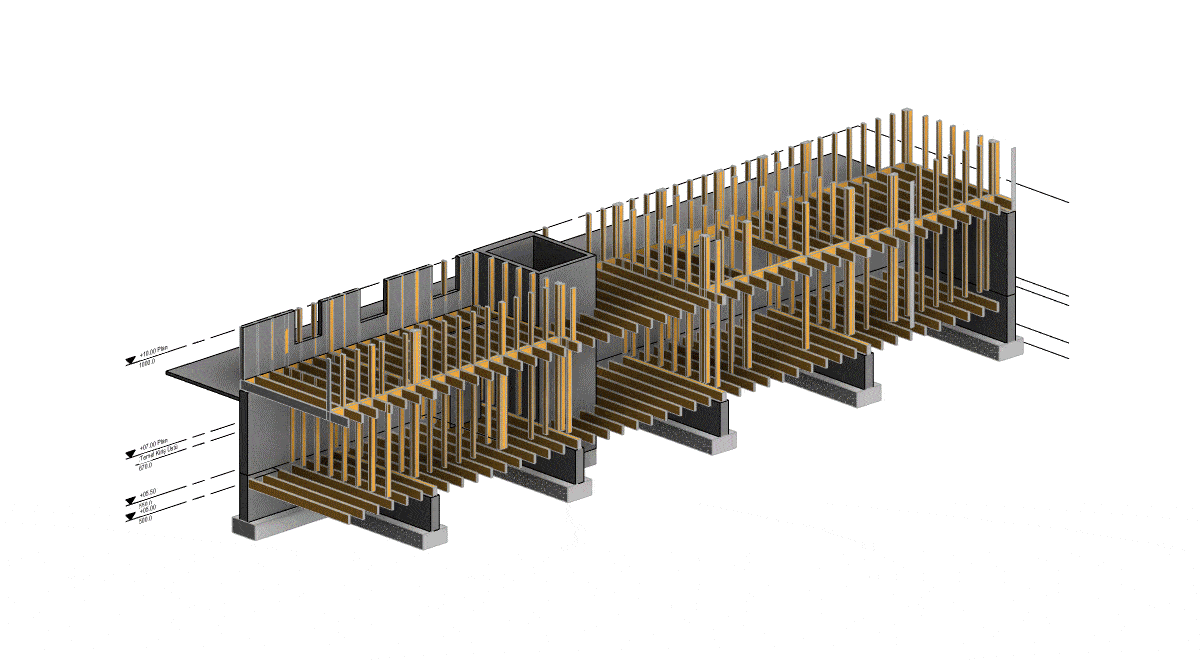

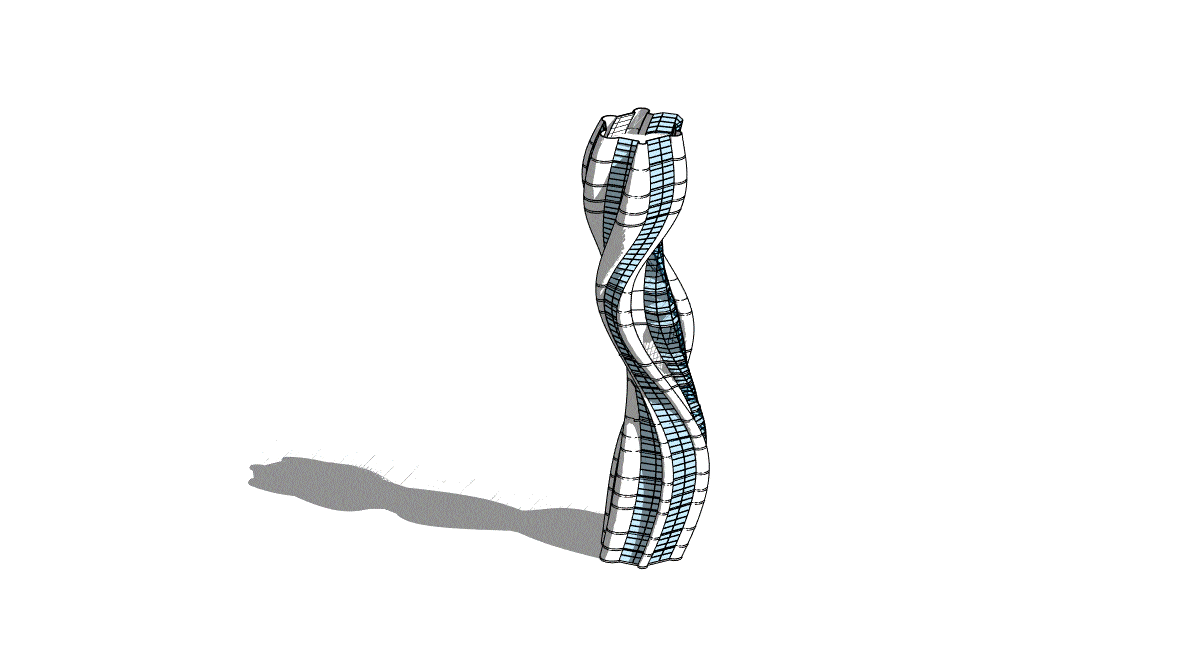

Front to Back
Top to Bottom
Front to Back
Left to Right
Top to Bottom
Back to Front
Right to Left
Bottom to Top
Via the SectionBox Animator's interface, the gifs could be created in any direction.
Reverse Gifs
Reverse Gifs
The slices are normally cut in the input direction. But, by the reverse option, the gifs could be constructed backwards.
Non-Reversed
Reversed
Non-Reversed
Reversed
Speed
Speed
The speed of the gif animation could be specified on the interface.
Rotation
Frame Delay: 0.5 sec
Frame Delay: 0.25 sec
Frame Delay: 0.1 sec
Rotation
The gifs do not have to be created orthogonally, they could be created in any angle and direction.
Rotation 1
Rotation 2
Rotation 3
Slice Count
Slice Count
Users could specify the slice count which is the number of times the section box will cut the model.
Slice Count: 4
Slice Count: 10
Slice Count: 25
Interface
Interface
